Math

Add
Add Picture Additive calculation of two source values.

Input A: Type in a Value or Connect a Node
Input B: Type in a Value or Connect a Node
Subtract
Add Picture Subtract of two input source Values.

Input A: Type in a Value or Connect a Node
Input B: Type in a Value or Connect a Node
Multiply
Add Picture Multiply of two input source Values.

Input A: Type in a Value or Connect a Node
Input B: Type in a Value or Connect a Node
Divide
Add Picture Divide of two input source Values.

Input A: Type in a Value or Connect a Node
Input B: Type in a Value or Connect a Node
Hex To Int
Add Picture Convert a Hex Value to a Integer

Input: Type in a Value or Connect a Node. Keep in mind that the Input Value must be a String. If you Type in, the Value must be inside of double quotes. e.g."6f"
Int To Hex
Add Picture Convert a Integer Value to a Hex

Input: Type in a Value or Connect a Node.
Degrees To Radians
Add Picture Convert a Degree Value to Radians

Input: Type in a Value or Connect a Node.
Radians To Degrees
Add Picture Convert a Radians Value to Degrees

Input: Type in a Value or Connect a Node.
Value
Add Picture Outputs a Double Value
Pi
Add Picture Outputs Pi Value
Random Value
Add Picture Outputs a Random Value
First Action Output a Random Value between 0.00 and 1.00
Input Random Low High: Type In a Low Value For Random function.
Input Random High: Type In a High Value For Random function.
Result: Output a Random Value between Random Low and Random High.
Range
Add Picture Maps any input Value to a new Output Range. In Properties pane you can set limit. Otherwise the Output will still applied if input lower or higher then MinIn and MaxIn.

Input In: Type in a Value or connect a Node.
Output Out: Output the Mapped Value.

Input MinIn: Type in a Minimal Input Value.
Input MaxIn: Type in a Maximal Input Value.
Input MinOut: Type in a Minimal Output Value.
Input MaxOut: Type in a Maximal Output Value.

Text

Length
Add Picture Count the input String and Output the length

Input: Type in a String in double quotes or connect a Node.
Output Result: Count of the Text.
Reverse
Add Picture Reverb the input String

Input: Type in a String in double quotes or connect a Node.
Output Result: Reverse Text.
To Lower
Add Picture Convert all Characters to Lower

Input: Type in a String in double quotes or connect a Node.
Output Result: Lower Text.
To Upper
Add Picture Convert all Characters to Upper

Input: Type in a String in double quotes or connect a Node.
Output Result: Upper Text.
Replace
Add Picture Replace a string

Input: Type in a String in double quotes or connect a Node.
Input Replace: Type in a String in double quotes or connect a Node.
Input With: Type in a String in double quotes or connect a Node.
Output Result: Replaced Text.
Text Combiner
Add Picture Combine Strings / Values to a String

Input A-F: Type in a String in double quotes or connect a Node.
Output Result: Combined Text.

Generic

If
Add Picture Check If Input A is equal Input B

Input A-B: Type in a String in double quotes / Value or connect a Node.
Input True-False: Type in a String in double quotes / Value or connect a Node.

Output Result: If Equal Output Input True. If not Output Input False
Mouse
Add Picture Output the Mouse Position and Left/Middle/Right Button Click or set the Mouse to Position

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input interval: set the Update Refresh Rate.
Output X: Output the X Position.
Output Y: Output the Y Position.
Output Left/Middle/Right Button: Output 0 if not clicked and 1 if clicked.
Input set X: Set X Position of Mouse
Input set Y: Set Y Position of Mouse

Generator

Tick
Add Picture Output every given time a Action

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input interval: set the Update Refresh Rate.
Tick: Action.

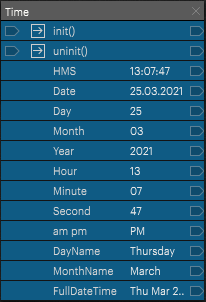

Time
Add Picture Output the System Date and Time

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Output: Different Time Values.
Stopwatch
Add Picture Simple Stopwatch

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input Reset: Reset the Value to 0.
Output: Time in Seconds.
Counter
Add Picture Simple Counter

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input Reset: Reset the Value to StartTime.
Input StartTime: Start Time of the Counter.
Output Tick: Time in Seconds.
Output Finish: Action if Time is 0.0
Linear
Add Picture Linear Value Generator

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input reset: Reset the Value.
Input From: Start Value.
Input To: End Value.
Input Offset: Offset in Degrees. 0 or 360 is no Offset and 180 is Middle.
Input Speed Sec: Time in Seconds From Low to High Value.
Output Result: Generated Value
Sinus
Add Picture Sinus Value Generator

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input reset: Reset the Value.
Input X: Sinus between Value an -Value.
Input Offset Y: Adds a Value to Change the Zero Value.
Input Phase Degrees: Offset in Degrees. 0 or 360 is no Offset and 180 is Middle.
Input Speed Sec: Time in Seconds.
Output Result: Generated Value
Cosine
Add Picture Cosine Value Generator

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input reset: Reset the Value.
Input X: Cosine Value and -Value.
Input Offset Y: Adds a Value to Change the Zero Value.
Input Phase Degrees: Offset in Degrees. 0 or 360 is no Offset and 180 is Middle.
Input Speed Sec: Time in Seconds.
Output Result: Generated Value
Bump
Add Picture Bump Value Generator

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input reset: Reset the Value.
Input X: Bump Value.
Input Offset Y: Adds a Value to Change the Zero Value.
Input Phase Degrees: Offset in Degrees. 0 or 360 is no Offset and 180 is Middle.
Input Speed Sec: Time in Seconds.
Output Result: Generated Value
Circle
Add Picture Circle Value Generator

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input reset: Reset the Value.
Input Size: Size Value.
Input Offset X: Adds a Value to Change the Zero Value.
Input Offset Y: Adds a Value to Change the Zero Value.
Input Phase Degrees: Offset in Degrees. 0 or 360 is no Offset and 180 is Middle.
Input Speed Sec: Time in Seconds.
Output Result X: Generated X Value
Output Result Y: Generated Y Value
Cube
Add Picture Circle Value Generator

Input init: Activate the Module.
Input uninit: Deactivate the Module.
Input reset: Reset the Value.
Input X: Bump Value.
Input Offset Y: Adds a Value to Change the Zero Value.
Input Phase Degrees: Offset in Degrees. 0 or 360 is no Offset and 180 is Middle.
Input Speed Sec: Time in Seconds.
Output Result X: Generated X Value
Output Result Y: Generated Y Value

Figure53

QLab

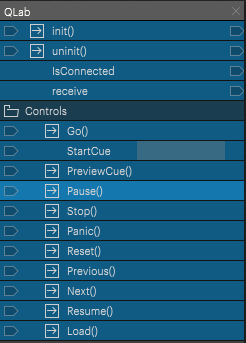

Add Picture Figure 53 QLab Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages from QLab
Controls: Actions to trigger Commands in QLab
Add Picture Properties Pane Module

IP: Ip Adress of Qlab Device.
Port: Port of QLab Device. Default for UDP is 53000
Port Receive: Port of QLab Device for Receving. Default for UDP is 53001
IP local adapter: your own IP Adress to specified the Network Port.
Workspace Name: QLab Workspace Name to control

Birddog

Birddog Visca

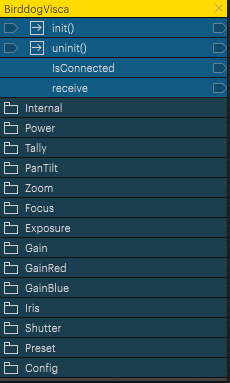

Add Picture Birddog Visca Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages
Controls: Actions to trigger Visca Commands
Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port to Device. Default for UDP is 52381
Port Receive: Port for Receving. Default for UDP is 52381
IP local adapter: your own IP Adress to specified the Network Port.

Blackmagic Design

TeranexMini
Add Picture TeranexMini Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages from QLab
Controls: Actions to trigger TeranexMini
Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: TCP Port of the Device. Default is 9995
Videohub
Add Picture Videohub Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages
Controls: Actions to trigger Videohub

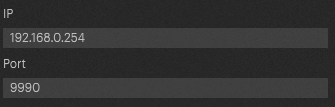

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: TCP Port of the Device. Default is 9990

Barco

Eventmaster
Add Picture Eventmaster Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages
Controls: Actions to trigger Eventmaster

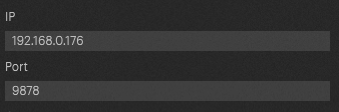

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: TCP Port of the Device. Default is 9878
Imagepro
Add Picture Imagepro Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages
Controls: For Imagepro I or II Actions to trigger

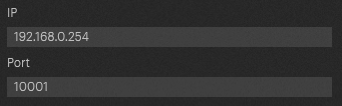

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: TCP Port of the Device. Default is 10001

Bitfocus

Companion
Add Picture Companion Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
receive: receive messages
Controls: Actions to trigger Companion

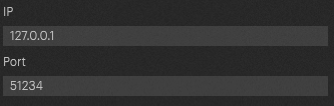

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: TCP Port of the Device. Default is 51234

AJA

Halo
Add Picture Halo Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
State: Information About Streaming State and Recording State
StartStreaming: Start the Stream
StopStreaming: Stop the Stream
StartRecording: Start the Recording
StopRecording: Stop the Recording
SelectRecordingProfile: Change Profile Recoding. Value between 0-9
SelectStreamingProfile: Change Profile Streaming. Value between 0-9
SetRecordingName: Set the Name of the Recording. Input must be a String
RecallPreset: Recall the Preset with ID...
Add Picture Properties Pane Module

IP: Ip Adress of the Device.

StudioCoast

VMix
Add Picture VMix Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: Information About Connection State
InputToProgram: Cut a Input direct to Programm. Type in Input Number or Name in doublequotes ""
InputToPrev: Cut a Input direct to Prev. Type in Input Number or Name in doublequotes ""
CustomCommand: Please look at www.vmix.com for custom Function Commands
Internal: Internal Receiving Function
State: State of Version, Edition, Preview Input, Programm Input, Overlays, Streaming State, Recording State, Fullscreen State...
Transition: Cut, Fade, Wipe, Cube, ... Transition. int Mix, int Duration in ms
AutoTransition: Transition 1-4, Stinger 1-4
Overlay: Overlay 1-4 Toggle Prev/Programm, OnPGM, OffPGM
Output: Send Inputs, PGM, Mulitviewer to Outputs, Externals, Fullscreens

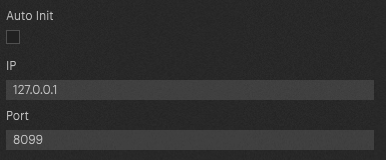

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port of the TCP Connection. Default: 8099.

Lightware

Lightware LW2 Protocoll
Add Picture Lightware Module LW 2 Protocoll

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: Information About Connection State
receive: Receive information
Preset: Save, Load, Preview, Rename Presets
ioControl: Input to Output, Mute Output, Lock Output,...
EDID: EDID to Input, Output EDID to Input, Lern Edid
System: Factor Reset, getSerial, Default Name In, Default Name Output,...

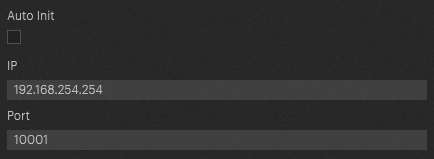

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port of the TCP Connection. Default: 10001.
Lightware LW3 Protocoll
Add Picture Lightware Module LW 3 Protocoll

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: Information About Connection State
receive: Receive information
Preset: Save, Load, Preview, Rename Presets
ioControl: Input to Output, Mute Output, Lock Output,...
EDID: EDID to Input, Output EDID to Input, Lern Edid
System: Factor Reset, Standby, Soft Reset, WakeUp, Testpattern On/Off

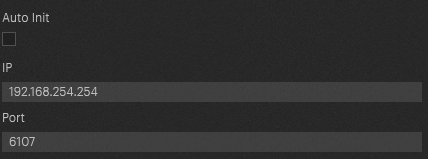

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port of the TCP Connection. Default: 6107.

MA Lighting

GrandMA 2
Add Picture GrandMA 2 Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: Information About Connection State
receive: Receive information
Command: Send CommandLine Messages, DefGO, DefGO-, DefPause
Button: Page Buttons, X Key

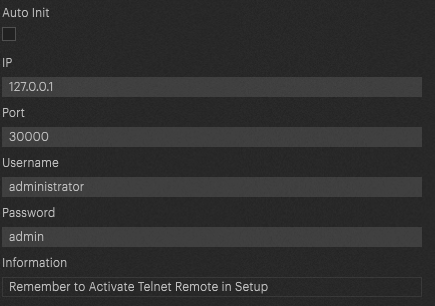

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port of the TCP Connection. Default: 30000.
Username: Username for LogIn. Default: administrator.
Password: Password for LogIn. Default: admin.

Please Keep in mind to Activate Telnet Remote in GrandMA2 Setup
GrandMA 3
Add Picture GrandMA 3 Module OSC

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: Information About Connection State
Send: Send CommandLine Messages, ExecutorFader At Position
Receive: generell receive, receiveInt, receive Master Controls, receive Playback Controls,...

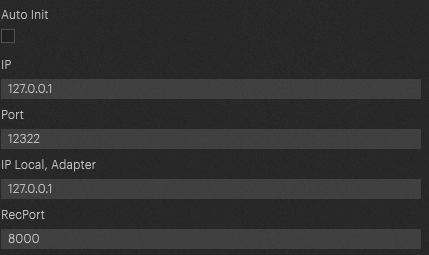

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port of the OSC Commands
IP Local Adapter: IP Adress from Receiving Network Port.
Rec Port: Port for Receive OSC Commands

Please Keep in mind to Activate OSC Send/Receive in GrandMA3

DT Videolabs

PlaybackProPlus

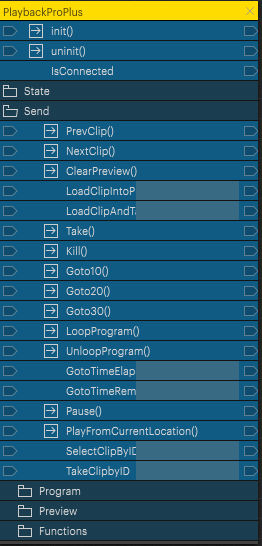

Add Picture DT Videolabs PlaybackProPlus Module

Input init: Activate the Module.
Input uninit: Deactivate the Module.
IsConnected: show connected or disconnected.
State: receive messages, Times, Medianames
Send: Actions to trigger Commands in PlaybackProPlus

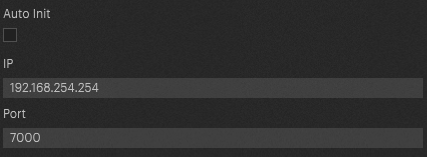

Add Picture Properties Pane Module

IP: Ip Adress of the Device.
Port: Port to Device. Default for TCP is 7000
Don't forget to activate TCP Remoting in PlaybackProPlus
©2019- Benni M.
